Customized Solution 2

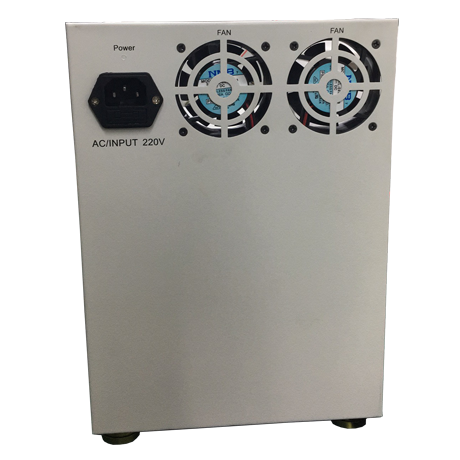

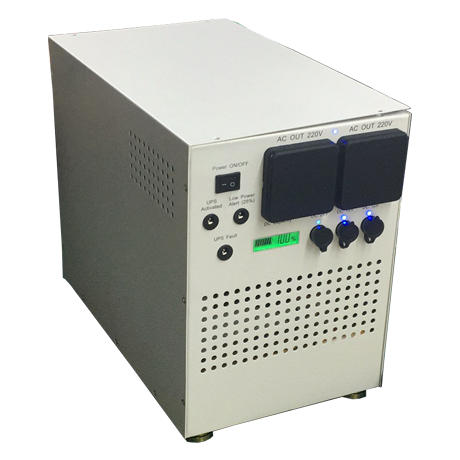

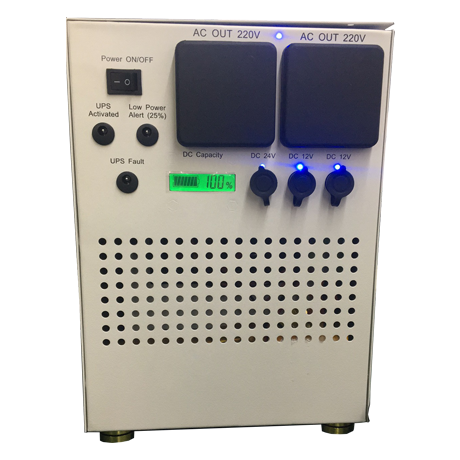

MODEL: 300W UPS

FEATURES

  • 2 x AC220V/50Hz Output
  • 2 x DC12V,10A Output
  • 1 x DC24V,10A Output
  • 3 x Dry Contact Signalling Output
    1. Backup Battery Activated (Power trip)
    2. Low battery warning (@25% capacity)
    3. UPS fault (battery pack not charging)
SKU: Custom-Solution-2 Category:

Description

  1. Battery charging voltage at 24.8V , Over-discharge protection at 18.6V, Overload protection at 100A,
    short-circuit protection.
  2. Charging time 8-10hrs.
  3. Max AC Output load at 1000W,AC Output at 220V 50HZ.
  4. 1 x DC 24V,10A Regulated,built in overload protection.
  5. 2 x DC 12V,10A Regulated,built in overload protection.
  6. Toggle ON/OFF switch controls all output ports.
  7. UPS switch-over time : 5-10ms
  8. Operating Temperature : 10°C – 55°C
  9. Storage Temperature : -20°C – 75°C
  10. During AC Power shutdown, dry contact closes, signal out.
  11. Battery capacity reaches 25%,dry contact closes, signal out.
  12. When battery pack is not charging, dry contact closes, signal out.

Using Panasonic 18650 Lithium battery cells 3400mah

  1. 300W load to operate for 2 hours, we base on a capacity of 600WH
  2. Total of 54 cells, Configuration of 9S6P, actual capacity of 54*3.7*3.35=669WH
  3. DC Output 1: 12V, 10A x 2
  4. DC Output 2: 24V, 10A x 1
  5. AC Output load (Max): 1000W
  6. Dimensions: 400 x 180 x 300mm
  7. Weight: +9Kg
